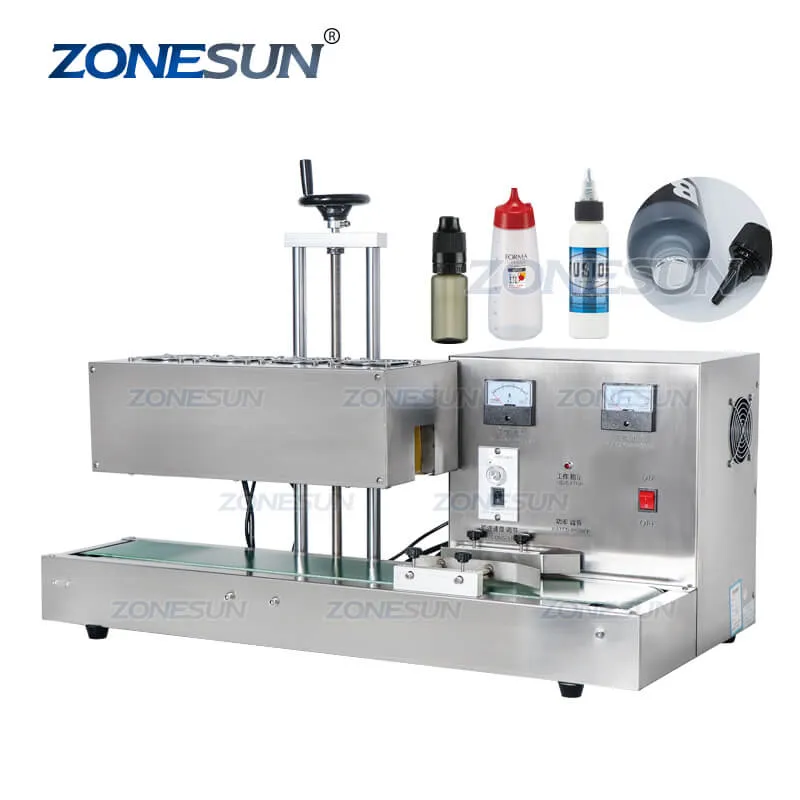

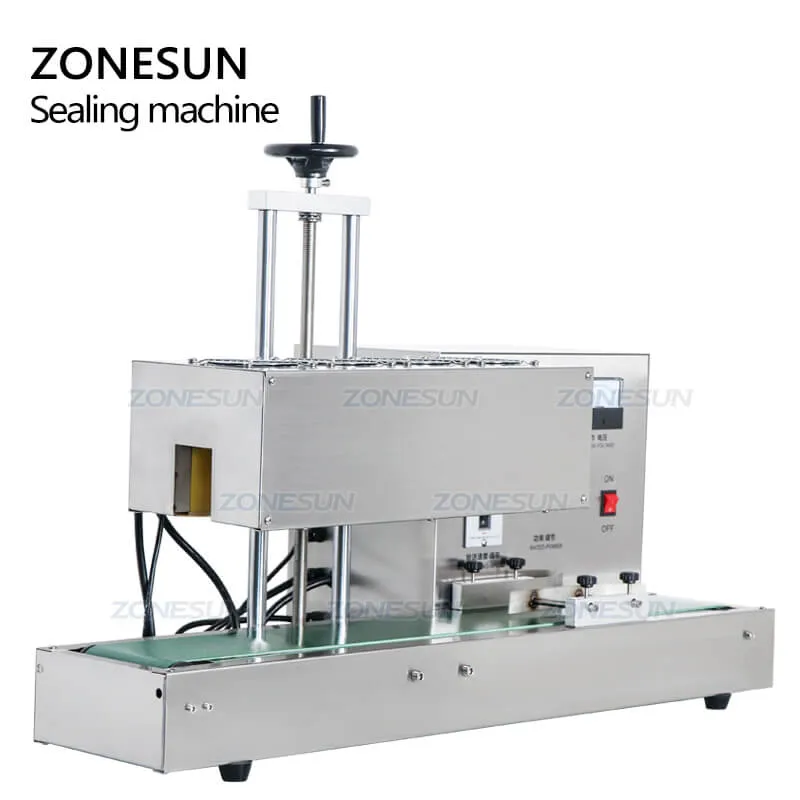

This machine is designed for sealing plastic caps of sharp mouth bottle.The working height of this machine can be adjusted according to bottle size. It is widely used in food industries.
Parameter
- Machine model: ZS-FK2200
- Machine voltage: 110/220V 50-60Hz
- Machine power: 2200W
- Sealing diameter: Φ15-85mm
- Suitable bottle height: 10-350mm
- Conveyor belt speed: 0-10m/min
- Sealing speed: 20-50 bottles/min
- Machine weight: About 25kg
- Package size: About 1000*585*550mm
- Package weight: About 49kg

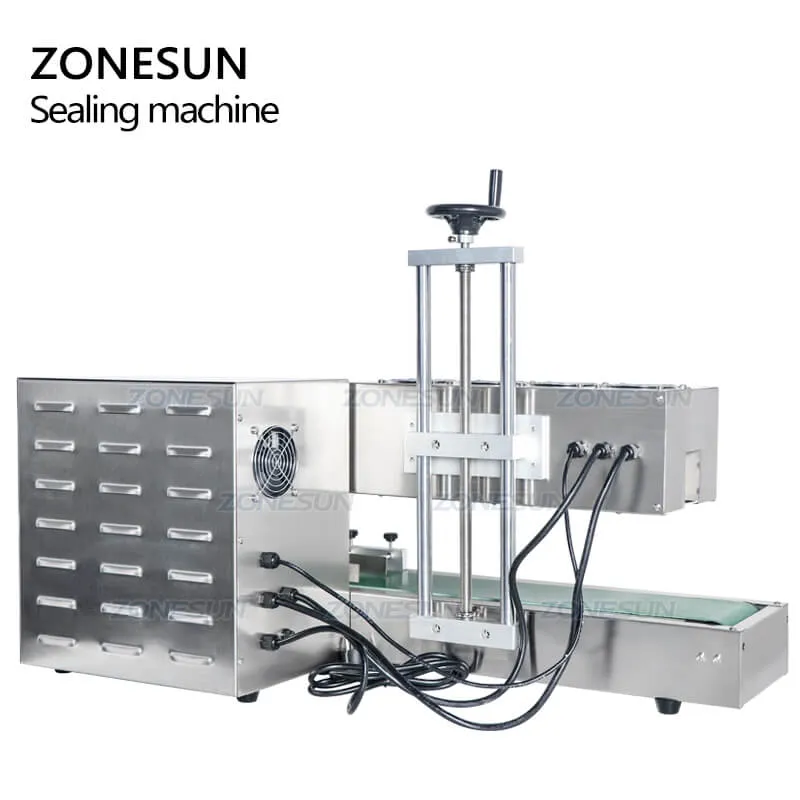

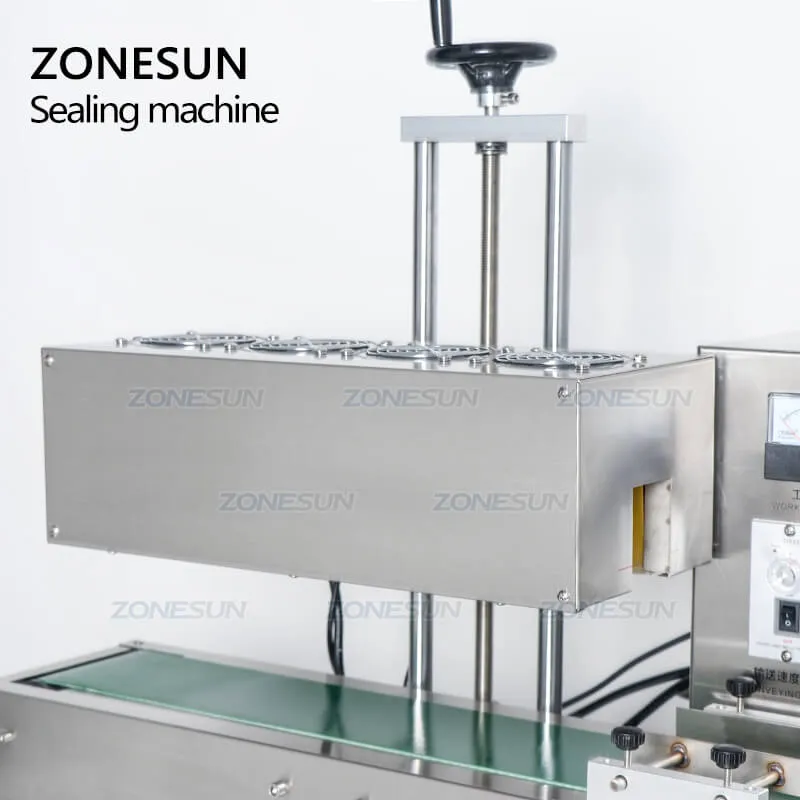

The working height of this machine can be adjusted according to bottle height by rotating the knob.This can help to improve production quality.
The simple control panel can help you watch working voltage and current in real time,ensures the safety operation.The sealing temperature can be adjusted according to operation need.

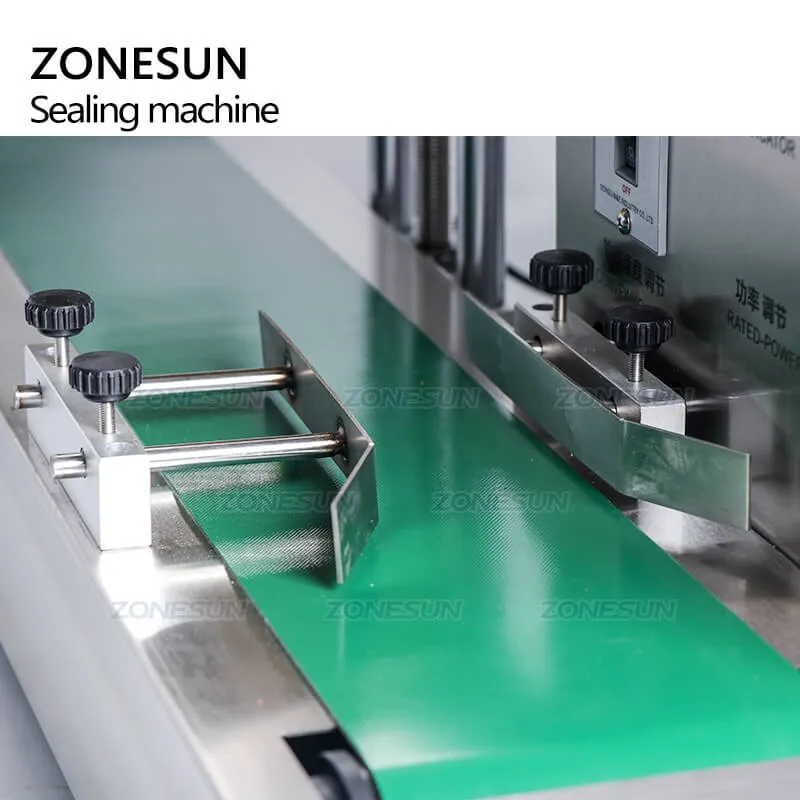

The feeding inlet can be adjusted according to bottle diameter.This can help to arrange bottle before sealing.Makes sure the production can be in order.

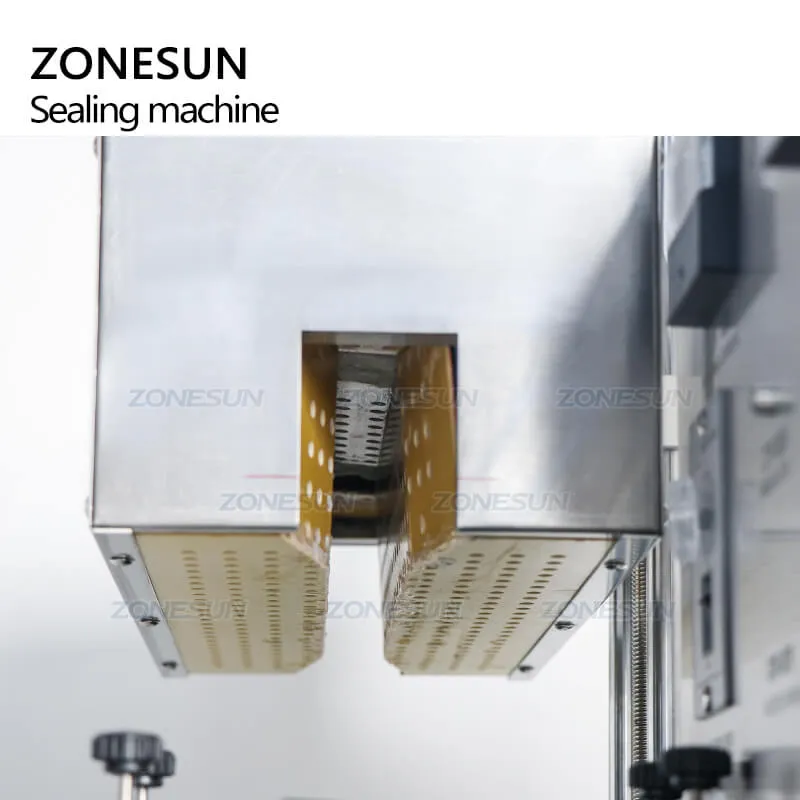

The host sends the audio current to the sensor head, and the aluminum foil is electromagnetically induced to generate super-audio current, which instantly reaches high temperature, so that the composite film is bonded to the bottle mouth.This design is good for sharp mouth bottles.
